General Specifications

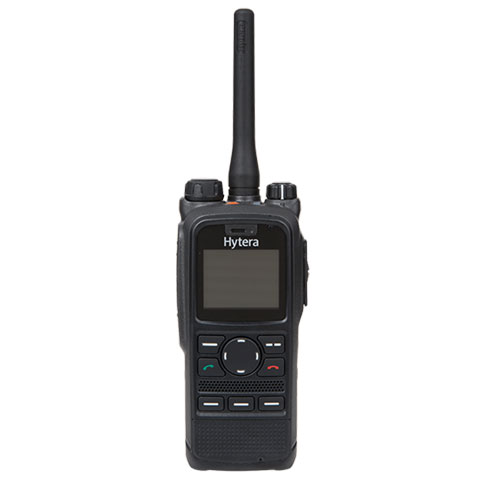

The handheld radio PT560H offers the full portfolio of TETRA functionality combined inside an ergonomic housing. Highly robust, best digital voice quality, a keypad with programmable keys and various safety features offer unbeatable TETRA communication in every situation.
Some of the functions that are listed need to be activated with a license key.
-
- Trunked radio mode (TMO): Communication via the TETRA radio network (semi-duplex and duplex mode)
- Direct mode (DMO): Direct communication between the radios (semi-duplex)
- Support of DMO Repeater and TMO / DMO Gateway communication: increases the range for direct mode communication (DMO)
- Group calls
- Group call
- Group call with defined priority (incl. pre-emptive priority)
- Group call with emergency call priority
- Dynamic Group Number Assignment (DGNA)
- Broadcast call (group, TMO)
- Subscriber identification (talking party indication in the group call)
- Individual call
- Individual call, half-duplex
- Individual call, duplex (TMO)
- Individual call with defined priority (also pre-emptive priority)
- Calling Line Identification Presentation (CLIP)
- Calls to telephone networks (PSTN/PABX) (TMO)
- PSTN/PABX individual call, full-duplex
- PSTN/PABX individual call, half-duplex
- DTMF
- Calling Line Identification Presentation (CLIP)
- Authentication
- Air interface encryption (TEA1, TEA2, TEA3, TEA4)
- End-to-end encryption (E2EE)
- TETRA security class 1, 2, 3, 3G (non-encrypted, static encryption, dynamic encryption, group encryption)
- Key distribution via air interface (OTAR)
- Temporary/Permanent disable/enable via air interface
- Ambience listening
- Safety and security functions for the user
- Emergency call button
- Lone worker function / man-down alarm
- Position alarm
- Silent alarm
- Call barring
- Key Lock
- Configuration protection / configuration password
- TX Inhibit (TXI)
- Functions of the user interface
- 12 programmable keys for direct access to individual functions (shortcut keys)
- 4-ways navigation key
- Separate rotary switches for call groups and audio volume
- Call protocol: missed / answered calls, dialed numbers
- Flexible dialing (e.g. dialing, redialing, dialing lists etc.)
- Special microphone:
- Top microphone for semi-duplex calls
- Bottom microphone for duplex conversations
- Adjustable display brightness
- Many international languages are already available, installation of several optional languages on radio
- GPS location according to ETSI LIP or NMEA protocol
- Completely integrated individual chip GPS receiver
- Completely programmable position updating
- Transmission of the position data on emergency call
- Time synchronization and calibration
- Bluetooth R4.0 ® (optional module)
- Wireless BT connection to different audio and PTT devices
- Automatic search and detection of compatible BT devices
- High speed PEI interface
- Clock synchronization via GPS / SAT, radio network or local time
- Energy saving mode
- Automatic cell re-selection without call interruption (handover)
- Programming several selectable network identifications (TMO, DMO)
- Programming several selectable PSTN / PABX gateways
- Customizable alarm tones
- Data / message services
- Short data service (SDS) - types 1, 2, 3, 4 and TL
- Multiple SDS: Long SDS and Flash SDS
- Status message / text message
- Notification on new messages during calls
- Packet Data service (packet data, single-slot, multi-slot)
- Java™ platform MIDP 2.0
